Swirly Bokeh? The legendary Zeiss Biotar 58mm f2 vs. the Russian copy Helios 44M-4 58mm f2 lens

Article abstract

How does this well-preserved copy of the legendary Carl Zeiss Jena Biotar 58mm f2 lens  made in 1953 compare with a Russian Helios 44M-4 58mm f2 lens in MINT condition made in 1990? The Helios lens is a Russian copy of the German Biotar lens.

To judge if both Biotar type lenses are still good for daily usage with modern digital cameras, both are adapted and tested on a Sony alpha 7ii full frame camera and compared with the modern Canon EF 50mm f1.8 STM lens. We’ll also check both lenses for a swirly bokeh.

Carl Zeiss Biotar 58mm f/2 lens vs. Helios 44M-4 58mm f/2 lens
Here you can see all three lenses, the Carl Zeiss Biotar 58mm f2 classic lens made in 1953 (right), the Helios 44M-4 58mm f2 classic lens made in 1990 (middle) and the modern Canon EF 50mm f1.8 STM lens (left)

Both classic Biotar 58mm f2 lenses are an important part of lens history

The famous lens designer Dr. Willy Merté created the Biotar at Carl Zeiss. It was an optimized successor of the Planar lens, which was designed in 1936 as the Biotar 58mm f2 “kit lens” for the Kine EXAKTA 35mm camera  — the most innovative 35mm film camera before World War II. For the mathematical calculation of the Car Zeiss Biotar 58mm f2, 480 calculation steps were necessary, which resulted in a manuscript of 3200 pages closely described with numbers, on which 2 “human computers” worked for 3 years (Johannes Steiner: Fototaschenbuch 1959, Halle, 1958, page 156 and page 256).

Dr. Merté left Jena for Oberkochen in 1945 to help establish Carl Zeiss West Germany; he was under American protection, as were many of the company’s employees. In 1947, Dr. Merté went to the Unites States at the offer of the Institute of Optics of Boston University. He died the following year after a short illness in Dayton, Ohio.

Carl Zeiss Biometar 58mm f/2 lens EXACTA
The Kine EXACTA camera, which started being produced in 1936, and the Carl Zeiss Biotar 58mm f2 lens as kit lens

In 1949, Carl Zeiss Jena introduced the Contax S camera, the world’s first 35mm SLR mirror camera with an eye-level prism view finder and interchangeable lenses, and the Carl Zeiss Biotar 58mm f2 lens became the standard “kit lens” of the technically advanced Contax S camera.

Biometar 58mm f/2 lens
In 1949, Carl Zeiss released the world’s first 35mm SLR camera with an eye-level prism viewfinder and exchangeable lenses, the Contax S camera with the Biotar 58mm f2 as kit lens

The Carl Zeiss Biotar 58mm f2 lens was produced in several versions from 1936 until 1960, while the Russians produced their own versions of this lens as Helios 44 58mm f2 from 1958 until 1992. The Helios 44 lenses were in production for 34 years in several versions and served as the standard kit lens for their Zenith 35mm SLR cameras. The Helios 44 58mm f2 family of lenses, produced in the millions, are probably the most widely produced analog lenses in the world.

Take a look at Mark Holtz’s informative video about the Carl Zeiss Jena Biotar 58mm f2 classic lens

The first tested classic Biotar lens: Carl Zeiss Jena Biotar 58mm f2

Carl Zeiss Jena Biotar 58mm f2 lens on Sony alpha 7ii
The Carl Zeiss Jena Biotar 58mm f2 classic lens adapted to a Sony alpha 7ii full frame mirrorless camera

It’s best not to buy a Carl Zeiss Jena Biotar 58mm f2 classic lens without the quality label Q1 or without a Zeiss T coating if you’re looking for a lens with good image quality. If you check the lens offerings on e-bay, you will find many Carl Zeiss Jena Biotar 58mm f2 lens offerings without the Q1 label or without Zeiss T coating.

Carl Zeiss Jena Biotar 58mm f2 lens versions
Versions of the Carl Zeiss Jena Biotar 58mm f2 lens; tested was the PRE-SET version made in 1953

Tested was the pre-set version without black aperture stripes and with 10 aperture blades: https://www.pentaxforums.com/zeiss-58mm-biotar/

swirly bokeh Carl Zeiss Biotar 58mm f2
The tested Carl Zeiss Jena Biotar 58mm f2 lens has the quality label Q1 (left) meaning “Very good quality, above the average” and a red T label (right) for a Zeiss T coating (T stands for transparency).

The second tested classic Biotar lens: Helios 44M-4 58mm f2

The tested Helios 44M-4 lens was made in the Valdai factory (logo: ) located almost half way between St. Petersburg and Moscow, while the Zenit camera was made by KMZ in Krasnogorsk (logo: ) about 40km west of Moscow.

Helios 44M-4 58mm f2 lens made in Valdai factory and ZENIT body made in KMZ factory
In 1958, the Russians started to produce their copy of the Biotar 58mm f2 lens as Helios 44 58mm f2 lens. Here we see the later version, Helios 44M-4 58mm f2 made in 1990. Thanks to Sergii for lending the Camera and lens.

You can see more than 50 versions of the Helios 44 58mm f2 classic lenses here: https://radojuva.com/44-helios/ My tested Helios was the first multi-coated “MC” version h308 with 6 aperture blades.

Most Russian lenses indicate the year of production with the first two digits of the serial number.

swirly bokeh helios 44M-4 58mm f2 lens
The tested Helios 44M-4 58mm f2 lens has a serial number beginning with “90”, meaning it was produced in 1990.

Both classic Biotar lenses will be compared with a modern Canon digital lens

The modern Canon EF 50mm f1.8 STM digital lens is a good comparison for the two classic Biotar lenses because it is known to be a performer both in image quality and with its creamy bokeh. If the classic Biotar or Helios lenses come close to the Canon EF lens, I assume they are good enough for daily usage on a modern mirrorless full frame camera like the Sony alpha 7 series cameras.

Read here about how a Biotar differs from a Planar and Biometar lens design and if the modern Canon EF 50mm f1.8 STM lens is similar to a Biotar

Lens Design Evolution: Gauss, Double Gauss, Planar, Biotar and Biometar

Test scene: geothermal compound south of Munich, Germany

swirly bokeh biotar 28mm f2 hvs helios 44M-4

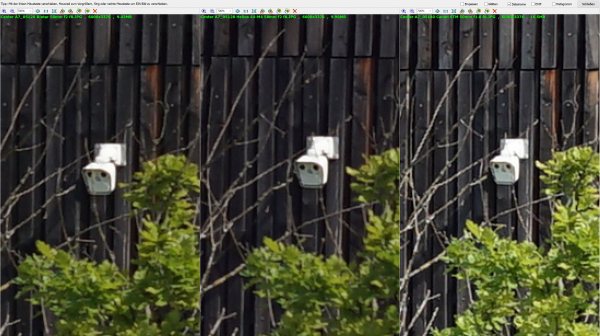

CENTER sharpness: Carl Zeiss Jena Biotar 58mm f2 vs. Helios 44M-4 58mm f2 vs. Canon EF 50mm f1.8

The Canon EF 50mm f1.8 STM lens was added in the test to compare the image quality of the classic Biotar type lenses with a modern digital lens. All lenses were shot at aperture f2, f4 and F8. The center sharpness of all 3 lenses are somewhat on par, but with a slight advantage for the modern Canon EF lens at aperture f2 and f4:

CORNER sharpness: Carl Zeiss Jena Biotar 58mm f2 vs. Helios 44M-4 58mm f2 vs. Canon EF 50mm f1.8

The corner sharpness of the classic Biotar type lenses is much less compared to the modern Canon EF lens at aperture f2 and f4, but is on par if the aperture is stopped down to aperture f8:

Some real life photos of the Carl Zeiss Jena Biotar 58mm f2 and Helios 44M-4 58mm f2 lenses

Click on the photos to enlarge. In some of the flower photos, which are shot with open aperture f2, you will find a nice swirly bokeh.

When you click on an image in the galleries, following buttons will allow you to select some features, including a slideshow (which is auto-started for some galleries, you have to press the pause button to stop a slideshow):

Slideshow | Fullscreen | Image-Info | Original-size

For flower photos like in the gallery above (in bright sunlight with open aperture f2), you should better use a ND8 neutral density filter to avoid over-exposure and a lens hood to avoid lens flare.

Carl Zeiss Biotar 58 f2 with ND8 grey filter and lens hood
Car Zeiss Jena Biotar 58mm f2 adapted to a Sony alpha 7ii full frame camera with lens hood to avoid lens flare and ND8 neutral density filter to avoid over-exposure

The bokeh behind the focused object

The swirly bokeh is created by the cat eyes in the bokeh circling around the center of the photo

The swirly bokeh comes best when the object in focus is approx. 2 meter away and the background out of focus is 5-7 meter away.

Rundown

Holy moley, both classic Biotar type lenses perform surprisingly well compared to the modern Canon EF 50mm f1.8 digital lens on the Sony alpha 7ii full frame camera. Some people say the German and Russian Biotar lenses from Carl Zeiss Jena and Helios are not sharp enough in the corners for landscape photography.

In my opinion, stopped down to aperture f8, both tested lenses show sufficient sharpness in the center and the corner to deliver a good image quality on the Sony alpha 7ii full frame sensor for landscape photos.

At open aperture f2, both Biotar lenses excel if you like a lens with a sharp center and a unique and very beautiful bokeh with a lot of character. If you look at the photos in the gallery above, its no wonder that the Carl Zeiss Jena Biotar 58mm f2 classic lens is praised at so many other websites and in so many YouTube videos.

But the image quality of classic lenses is very dependent on the serial dispersion in quality and on the conservation level of the respective individual pieces. In this respect, I may have been lucky to have tested two Biotar lenses that were of above average image quality.

The image quality of the German and Russian Biotar lenses are so similar that you can save around EUR 150 without being disadvantaged by buying a Helios 44M-4 58mm f2 for approx. EUR 50. It’s best to avoid the Helios 44M-5, 44M-6 or 44M-7 lenses though; it’s highly likely that you’d get an over-priced 44M-4 lens with “fake lettering” instead.

On a Sony a6100 camera with 24 megapixel APS-C sensor both lenses performed quite well, look at following blog post “More than Swirly Bokeh“:

Classic Cars photographed with Carl Zeiss Biotar and Helios 44M-4 58mm f2 lenses adapted to full-frame and APS-C cameras

The historical context of the Carl Zeiss Jena Biotar 58mm f2 lens:

East German Uprising in 1953

The tested Carl Zeiss Jena Biotar 58mm f2 classic lens was made in East Germany in 1953. That same year on June 16th, an uprising began with a construction workers strike in East Berlin. They were striking against the labor quotas during the Sovietization process in East Germany. On June 17th, the demonstrations in East Berlin turned into a widespread uprising against the government of the GDR and the Socialist Unity Party, in which over a million people took part. It was violently suppressed using tanks by the Soviet armed forces.

The historical context of the Helios 44M-4 58mm f2 lens:

Boris Yeltsin’s election and the first McDonalds Restaurant in Russia in 1990

The tested Helios 44M-4 58mm f2 classic lens was made in Russia in 1990. In that same year, the first McDonalds Restaurant opened its doors in Russia and Boris Yeltsin became the first ever elected president of Russia.
